£34.99 – £36.99 excl. VAT

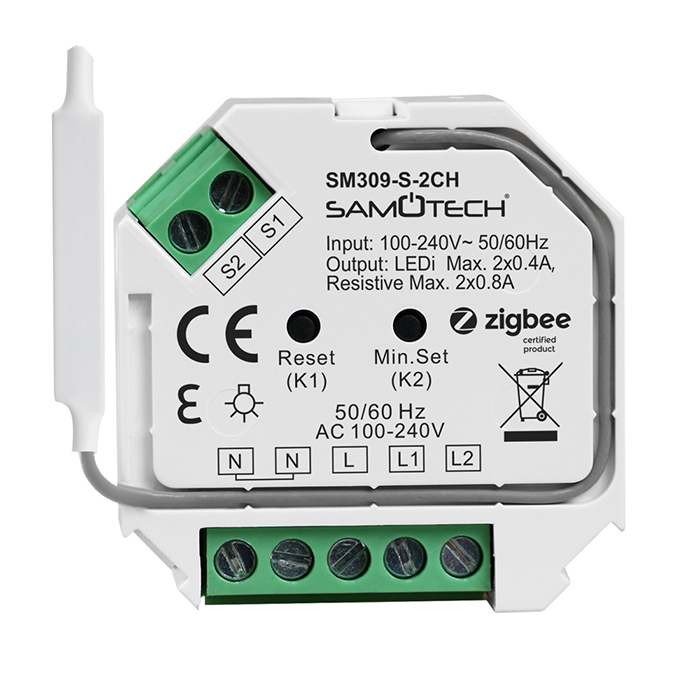

The new 2-Channel ZigBee AC Phase-Cut Dimmer from Samotech, built on the advanced ZigBee 3.0 protocol, offers versatile and reliable lighting control. With a wide voltage range of 100-240VAC, it supports both resistive and capacitive loads, making it compatible with various lighting setups. Each of the two output channels functions independently, allowing you to control lights separately using dedicated ZigBee endpoints.
Equipped with secure screw terminals, this dimmer ensures safe connections for both input and output. It provides the flexibility of leading and trailing edge dimming, with the default factory setting configured to trailing edge. Seamlessly managing ON/OFF switching and light intensity adjustments for dimmable LED bulbs or LED drivers, this new addition is ideal for modern smart homes.
Fully compatible with universal ZigBee gateways that support multiple endpoints, the dimmer can also be operated using a single-wire push switch, allowing separate control of each channel with individual switches. Its compact design fits easily into a standard 86×86 mm wall box, making installation simple and space-efficient.
Operating at a 2.4GHz radio frequency and rated IP20 for basic indoor protection, this innovative product from Samotech is a robust and adaptable solution for smart lighting applications.
Supported Zigbee clusters:
Input Zigbee clusters:
• 0x0000: Basic
• 0x0003: Identify
• 0x0004: Groups
• 0x0005: Scenes
• 0x0006: On/off
• 0x0008: Level Control
• 0x0b05: Diagnostics
• 0x1000: ZLL CommissioningÂ
@samotech_official #samotech #sm309 #smarthome #smarthome #diyproject #unboxingvideo #homeassistant #zha #techtips #automation #smartlights ♬ Confidence (sped up version) – Ocean Alley
| Weight | 35 g |
|---|---|
| Dimensions | 45 × 45 × 20 mm |
| Type | Typical, Pre-configured |
| BULB / LOAD TYPE | COMPATIBILITY | RISK LEVEL | TYPICAL SYMPTOMS | RECOMMENDATION | |
|---|---|---|---|---|---|
| SAMOTECH Dimmable GU10 |  |
Compatible | None | None | Recommended |
| Incandescent / Halogen |  |
Compatible | None | None | Recommended |
| Dimmable LED (Quality brands) |  |
Compatible | None | None | Recommended |
| Dimmable LED (Cheap / unknown) | |
Conditional | Very Low | Minor flicker. May not turn off fully. | Test first. Use a bypass if required. |
| Low load LEDs (<15W) |  |
Conditional | Very Low | Minor flicker. May not turn off fully. | Use a bypass |
| LED strips (220V dimmable driver) |  |
Conditional | Medium | Minor flicker | Test first |
| Integrated LED fittings (separate LED driver, colour modes) |  |
Conditional | Medium | Flashing or intermittent operation due to internal LED driver control | Test first |
| Non-dimmable LED | |
Not compatible | High | Flicker, overheating | Do not use with dimmers |
| Smart bulbs |  |
Not compatible | High | Disconnects, rebooting | Do not use with dimmers |
| LED strips (220V non-dimmable driver) | |
Not compatible | High | Flicker, overheating | Do not use with dimmers |
| Fluorescent / CFL |  |
Not compatible | High | Failure to start | Do not use with dimmers |
| 5 star | 100% | |
| 4 star | 0% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |
exactly what I needed
