WiFi Dimmer Module – No neutral, module only

Name: WiFi Dimmer Module – No neutral, module only - Samotech
Brand: Samotech
SKU: SM323-WF
Price: 32.99 GBP
Availability: InStock
Rating: 5.00 (1 reviews)

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

£32.99

Bare Wi-Fi (Tuya / Smart Life) dimmer module – PCB only, no faceplate or knob. UK two-wire compatible (no neutral required, optional neutral connection). Up to 200W LED / 350W incandescent. Trailing-edge dimming. Fits inside a standard UK 35 mm-deep back box behind any existing wall plate – ideal for retrofitting or keeping a designer faceplate you already own.

Bare PCB module – fits behind any existing wall plate (retrofit-friendly)
Direct Wi-Fi pairing via Tuya / Smart Life app – no hub required
No neutral required – works on UK two-wire lighting circuits (neutral connection optional if available)
Dims up to 200 W LED, trailing-edge dimming
Alexa and Google Home voice control; HomeKit via the Smart Life bridge

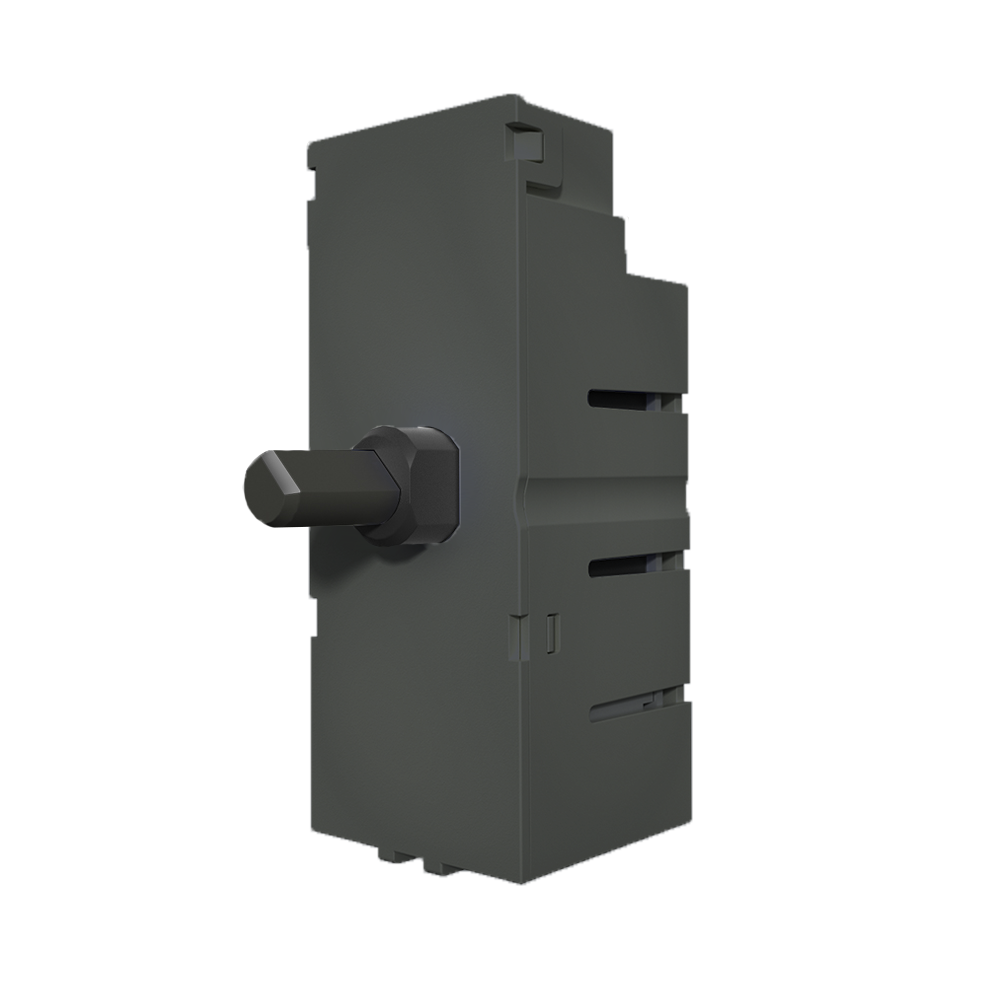

The SM323-WF module is the bare PCB version of our SM323 Wi-Fi dimmer – the same hardware used in the SM323-WF plate-bundled variants, supplied without a faceplate or knob. Designed for installers and customers who already own a designer wall plate, or who want to retrofit smart Wi-Fi control inside an existing UK wall switch.

Pairs over 2.4 GHz Wi-Fi via the Smart Life / Tuya app, with voice control through Amazon Alexa, Google Assistant and Apple HomeKit (via the Smart Life HomeKit bridge). No hub or coordinator required – just your home Wi-Fi network.

Key features

Protocol: Wi-Fi 2.4 GHz (Tuya / Smart Life ecosystem)
Dimmer type: Trailing edge (reverse phase)
Input voltage: 230 VAC, 50/60 Hz
Load range: 5 W to 200 W LED (350 W incandescent / halogen)
Module dimensions: 51 × 26 × 24 mm (fits standard UK 35 mm-deep back boxes)
Weight: 30 g
Wiring: Live only, or Live + Neutral if available. Screw terminals accept 1.0–1.5 mm² solid or stranded cable
Voice control: Alexa, Google Assistant, Apple HomeKit (via Smart Life bridge)
No hub required – connects directly to your 2.4 GHz home Wi-Fi

Ideal for

Retrofitting existing UK wall switches with Wi-Fi smart control
Customers who do not want to add a smart-home hub
Installations where you already own a designer faceplate
Simple plug-and-play setup via the Smart Life mobile app

Looking for the complete switch (module + screwless flat plate + knurled knob)? See the SM323-WF Wi-Fi Dimmer Switch family – available in white, grey, black, brushed chrome and brushed antique brass.

Brand	Samotech

Frequently Asked Questions

Does the SM323-WF require a neutral wire?

No. The SM323-WF is designed for two-wire UK lighting circuits without a neutral. Wiring connects to live (L) in and switched live (SL) out only – the same as a traditional rotary dimmer it replaces.

Will the SM323-WF fit in my back box?

The dimmer module is 64 × 27 × 24 mm and fits a standard UK single back box. We recommend a 35mm-deep back box for comfortable wiring and cable routing. Always confirm there is enough clearance behind the faceplate before mounting.

Which bulbs are compatible with the SM323-WF?

Trailing-edge dimmable LED bulbs (up to 200W total load), dimmable halogen, and incandescent lamps. Non-dimmable LEDs will not dim and may flicker or fail. Check the Bulbs Compatibility Matrix tab on this product page for a verified list.

Does the SM323-WF need a hub or bridge?

No. The dimmer connects directly to your 2.4 GHz home WiFi network through the Tuya Smart or Smart Life app. No Zigbee hub, Tuya gateway, or proprietary bridge is required.

Does it work with Alexa and Google Home?

Yes. After pairing with Tuya Smart or Smart Life, link the same account in the Amazon Alexa or Google Home app to enable voice control, routines, and group dimming across multiple devices.

What is the minimum load?

5W minimum. Below this, LED bulbs may flicker or fail to dim smoothly. For single low-wattage LED installations, an LED bypass capacitor across the bulb can resolve residual flicker.

Can I control the dimmer when I am away from home?

Yes. Tuya Smart and Smart Life support remote control, scheduling, scenes, and timer functions over the internet. No additional cloud subscription is required for these features.

What is included in the box?

The complete dimmer assembly – module, plate, and knob in your chosen finish – plus mounting screws and a quick-start installation guide. The faceplate and knob are factory-fitted to the module ready for installation.

Manual

Samotech SM323 WIFI Dimmer Switch Manual

Technical Data
