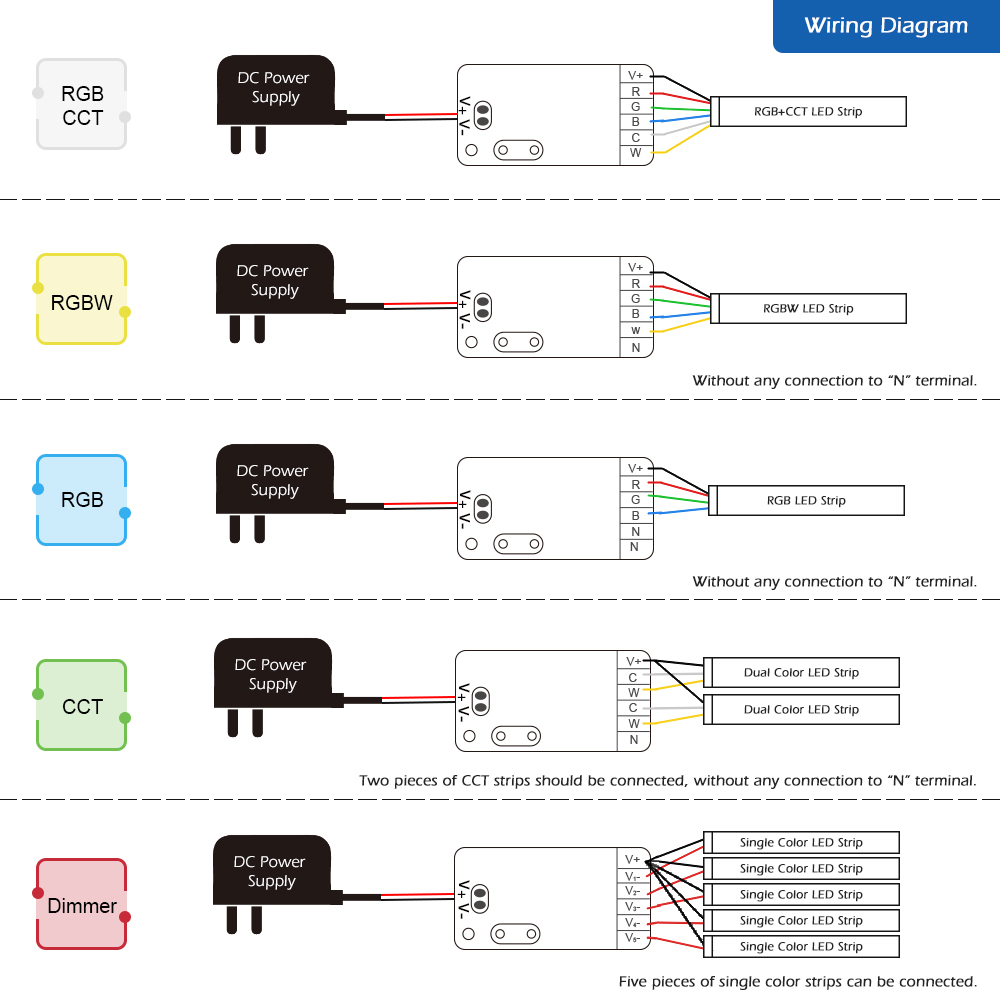

Zigbee LED Controller wiring diagram

Zigbee LED Strip Controller RGBCCT – Home Assistant Compatible

(9 customer reviews)

£19.99

Zigbee LED Controller by GLEDOPTO – RGB, RGBW & CCT strip control with independent W channel. Works with Philips Hue Bridge and Zigbee 3.0 hubs.



  • Ultra-slim form factor – fits behind a TV, under a cabinet or inside a tight strip channel
  • 12–24 V DC input – sits inline between your existing LED strip power supply and the strip
  • 5-channel constant-voltage output for RGB, RGBW, CCT or RGB+CCT LED strips
  • Independent W channel – dim white deep without RGB bleeding in
  • Zigbee 3.0 – pairs with Hue Bridge, Home Assistant, SmartThings, Tuya and any Zigbee 3.0 hub

In stock

SKU: GL-C-002P Categories: , Tags: , , , ,

Introducing a Smart Dimmable Zigbee LED driver tailored for RGB, RGBW, and CCT LED strip lights, anchored on the advanced ZigBee 3.0 protocol. Experience refined ON/OFF functionality and precision light intensity modulation for your RGBW LED Light Strip.

Distinctively, the W channel operates independently from the RGB channels, offering you nuanced control either through a dedicated RGBW remote or a smooth app interface. Ensuring broad compatibility, this device integrates with Zigbee 3.0 hubs, including the esteemed Philips Hue Bridge.

Its design ethos champions sleekness and space-efficiency, boasting an ultra-slim profile measuring just 7 x 3.6 x 1cm. Upgrade your LED lighting experience with this blend of technology and artistry.

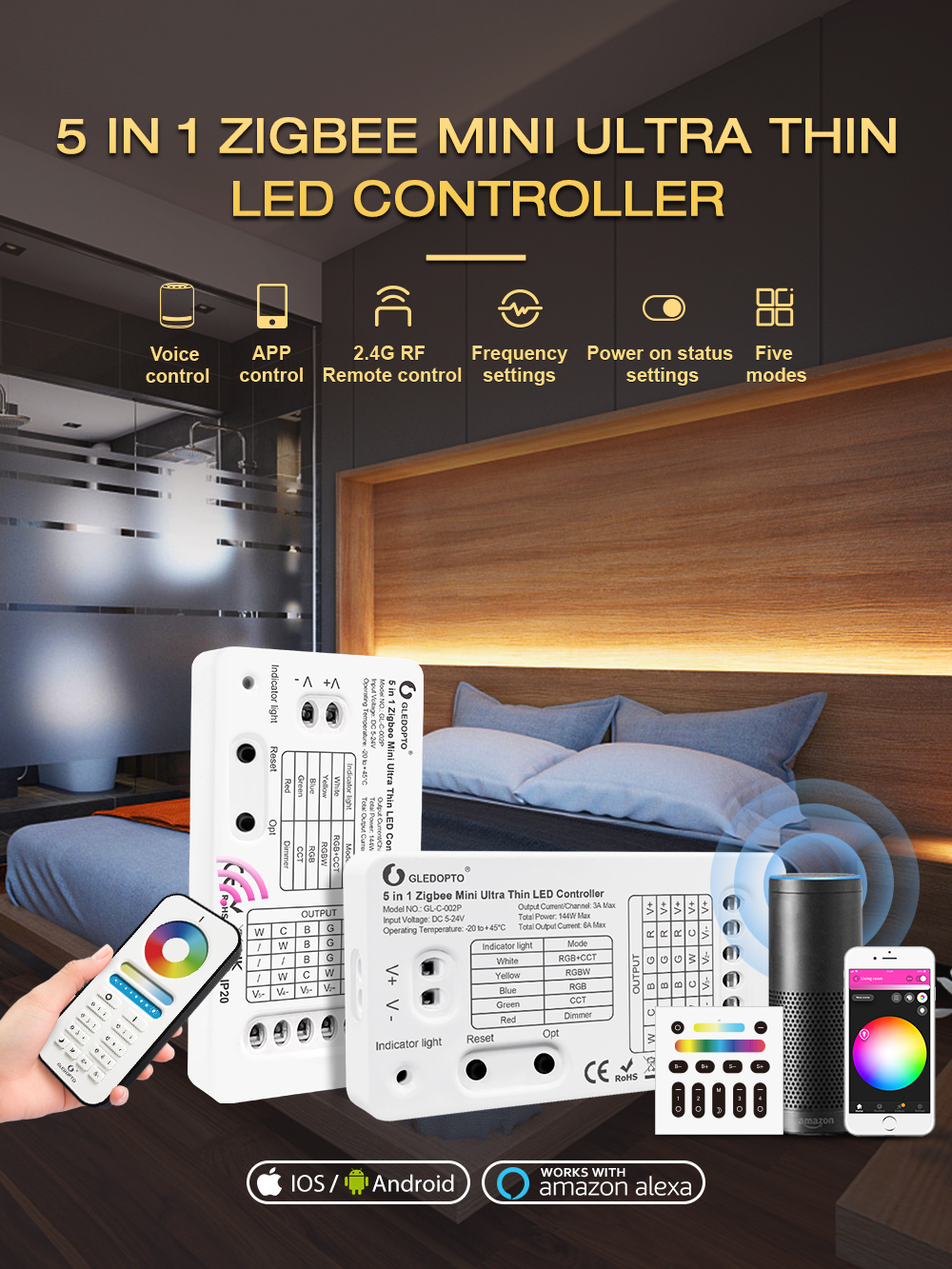

Add some color to your world with the Zigbee Mini LED Controller Pro series by GLEDOPTO! Customize any space with the lighting you want–instantly transforming it to match your mood.
Controller requires a power supply and works with different types of LED strips. Compatible with the most popular Zigbee 3.0 gateways including Philips Hue.

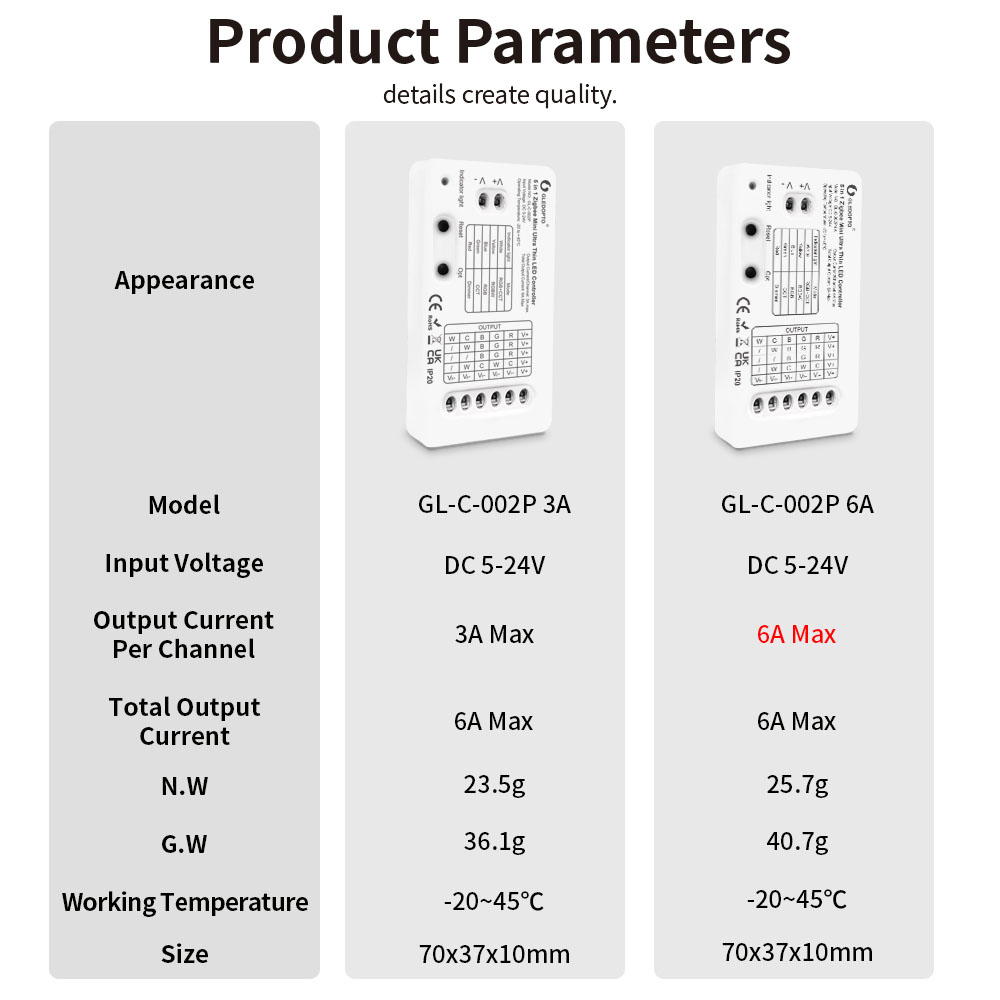

Type
Zigbee LED Controller 5 in 1
LED
Dimmer, RGB, RGBW, RGBCCT, CCT
Compatibility
Zigbee 3.0 hubs incl. Hue bridge
Size
70x36x10mm
Weight
23.5gr
Operating Temp.
-20°C ~ 40°C
Input Voltage
5 – 24V (power adapter not included)
Warranty
1 Year
Max Power
144W



Weight 40 g
Brand

GLEDOPTO

Frequently Asked Questions

What does the Gledopto Zigbee LED Controller do?

The GL-C-002P is a 5-in-1 Zigbee LED controller — it works as an LED Dimmer, RGB controller, RGBW controller, RGBCCT controller, or CCT (tunable white) controller depending on your strip type. Pair it to your Zigbee hub and you can dim, change colours, and adjust colour temperature on connected LED strips through your smart-home app or via voice.

Which LED strip types does the controller support?

The controller supports five strip configurations: single-colour dimmable LED, RGB, RGBW (with independent W channel), RGBCCT, and CCT (tunable white). The W channel operates independently of the RGB channels — control them via the app or a dedicated RGBW remote.

What input voltage and power output does the controller support?

Input voltage: 5–24V DC. Maximum power: 144W. The power supply is not included — pair the controller with an appropriate constant-voltage LED power supply matching your strip’s voltage and wattage requirements.

Which platforms is the LED Controller compatible with?

The controller uses Zigbee 3.0 and is compatible with all Zigbee 3.0 hubs, including the Philips Hue Bridge, Tuya gateways, Samotech hubs, Samsung SmartThings, Home Assistant, and others.

What size is the LED Controller?

The controller is ultra-slim at just 70 × 36 × 10 mm and weighs 23.5g — it fits discreetly inside profile housings or near the power supply, almost invisible after installation.

What are the operating conditions?

The controller is designed for indoor use within an operating temperature range of -20°C to +40°C. Pair it with an appropriately rated LED power supply for your environment.

What’s the warranty on the LED Controller?

The Gledopto Zigbee LED Controller is covered by a 1-year warranty.

9 reviews for Zigbee LED Strip Controller RGBCCT – Home Assistant Compatible

5.0
Based on 9 reviews
5 star
100
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%

Customer Images

Image #1 from Mark B.
Image #2 from Mark B.
Image #1 from Alex
Image #1 from Mark B.

Mark B.

Great product. I’m using two of these with ZHA in Home Assistant and haven’t had any issues at all. Both are in my kitchen, each running a separate led strip. I wired the strips straight to the controller and power them with a 24V 300W power supply from Amazon since the strips are fairly long. They’re used daily through automations and an RF remote I bought separately here.

(1) (0)
Image #2 from Mark B.

Mark B.

Great product. I’m using two of these with ZHA in Home Assistant and haven’t had any issues at all. Both are in my kitchen, each running a separate led strip. I wired the strips straight to the controller and power them with a 24V 300W power supply from Amazon since the strips are fairly long. They’re used daily through automations and an RF remote I bought separately here.

(1) (0)
Image #1 from Alex

Alex

very compact and with lots of features, will buy again

(1) (0)
Image #1 from Mark B.
Image #2 from Mark B.
Image #1 from Alex
1-9 of 9 reviews
  1. Anonymous
    Verified owner

    Nice size

    (0) (0)
  2. leon Richardson
    Verified owner

    small and well built

    (0) (0)
  3. Mark B.
    Verified owner

    Great product. I’m using two of these with ZHA in Home Assistant and haven’t had any issues at all. Both are in my kitchen, each running a separate led strip. I wired the strips straight to the controller and power them with a 24V 300W power supply from Amazon since the strips are fairly long. They’re used daily through automations and an RF remote I bought separately here.

    Image #1 from Mark B.
    Image #2 from Mark B.
    (1) (0)
  4. Anonymous
    Verified owner
    (0) (0)
  5. John Dent
    Verified owner
    (0) (0)
  6. David Webster
    Verified owner

    Much more compact than expected. Work with Hue Bridge

    (0) (0)
  7. Anonymous
    Verified owner

    Works well. I paired it with an SM308S unit to allow Homekit control, as this unit alone was not Homekit compatible (although it is seen and controllable using the Hue app)

    (0) (0)
  8. Alex
    Verified owner

    very compact and with lots of features, will buy again

    Image #1 from Alex
    (1) (0)
  9. Anonymous
    Verified owner
    (0) (0)
