Zigbee Switch Module – Dual Channel [SM308-2CH]

Description

Smart Switch Detection: The SM308-2CH Zigbee module can now automatically identify the connected light switch type (see the Wiring diagram tab below).

Slim Design: The module is now compact enough to fit into smaller spaces.

Protocol: Built on the modern ZigBee 3.0 protocol, this switch ensures compatibility and unparalleled performance.

Broad Compatibility: connect with leading systems, including Philips Hue, Homekit, Echo Plus, Hubitat, Homeassistant (ZHA, deConz, Conbee, Raspbee), and other prominent ZigBee gateways.

Dual Channel Power: Features a 2-channel output with a generous load capacity of 5.1A per channel.

Enhanced Integration: broad compatibility with Hue and other Zigbee 3.0 platforms.

Touchlink Commissioning: As a ZigBee router device, it champions Touchlink pairing, enabling connection with compatible ZigBee remotes without needing a coordinator.

Network Autonomy: Establishes a Zigbee network independently without a coordinator, adding other devices to the ecosystem.

Optimized Binding: Facilitates find-and-bind mode for ZigBee remotes and is optimized for Zigbee’s green power, supporting up to 20 green power switches.

Universal Switch Support: Conveniently operated by a universal single wire push switch, its dual channels can be independently regulated by two switches.

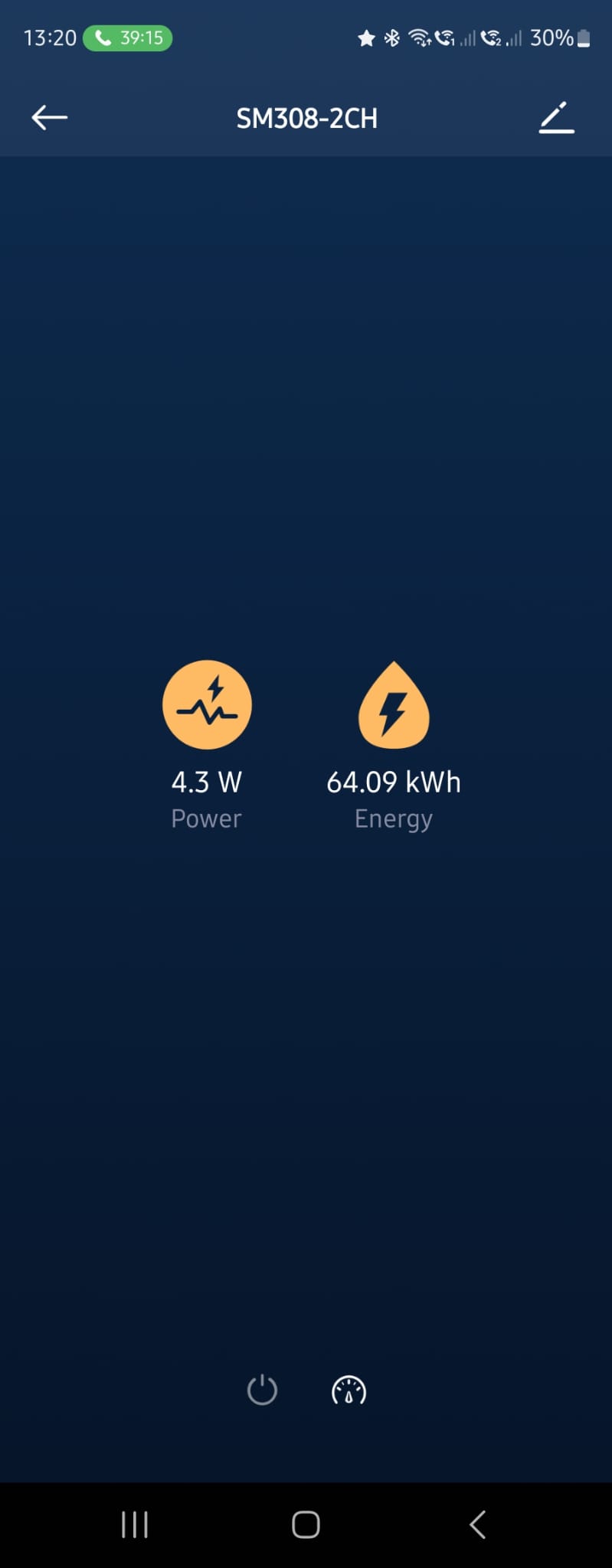

Power Monitoring: Stay updated with the active power and energy metering feature.

Supported Zigbee clusters:

Input Zigbee clusters:
• 0x0000: Basic
• 0x0003: Identify
• 0x0004: Groups
• 0x0005: Scenes
• 0x0006: On/off
• 0x0009: Alarm
• 0x1000: Touchlink
• 0x0b04: Electrical Measurement
• 0x0b05: Diagnostics
• 0x0702: Simple Metering
