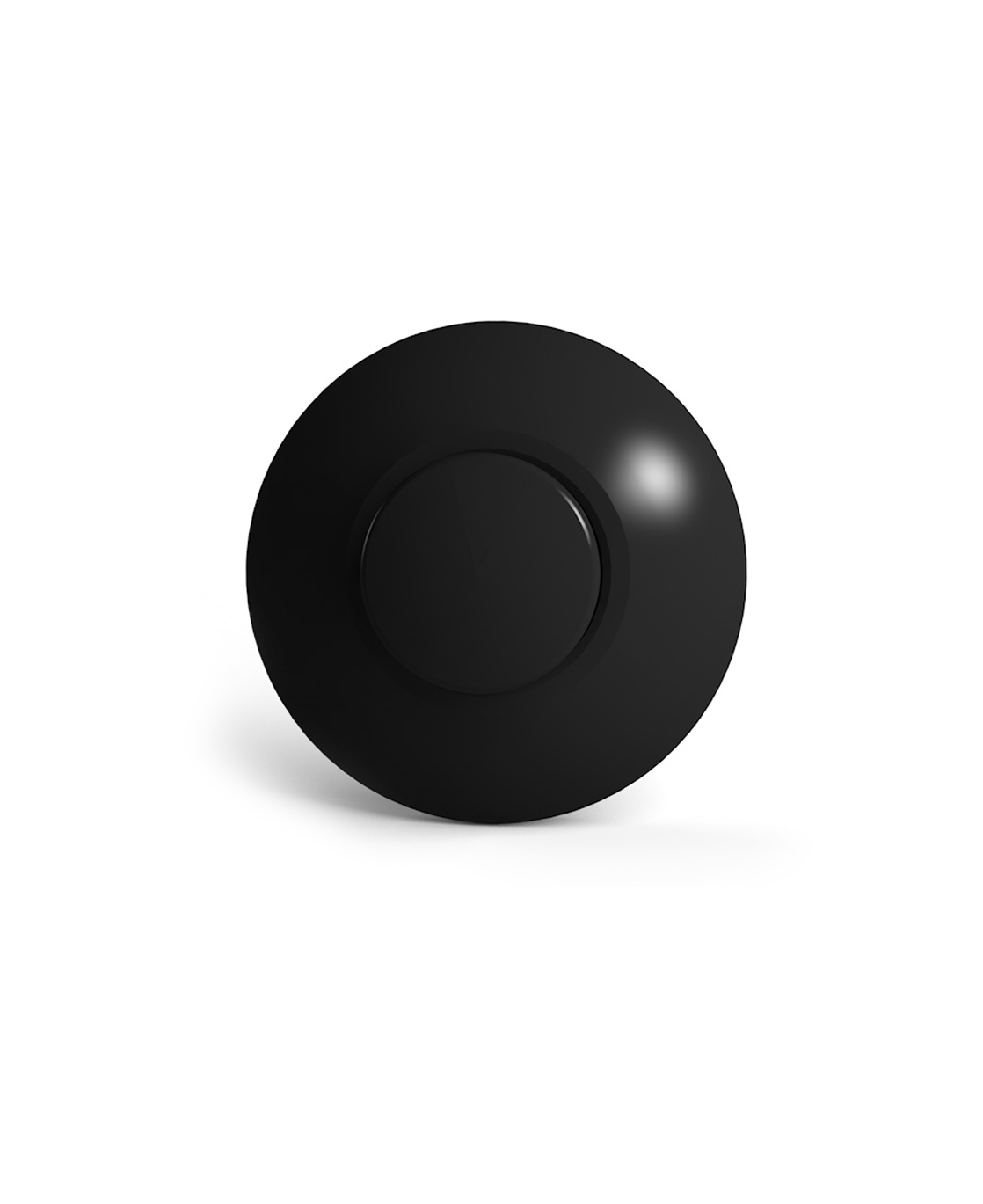

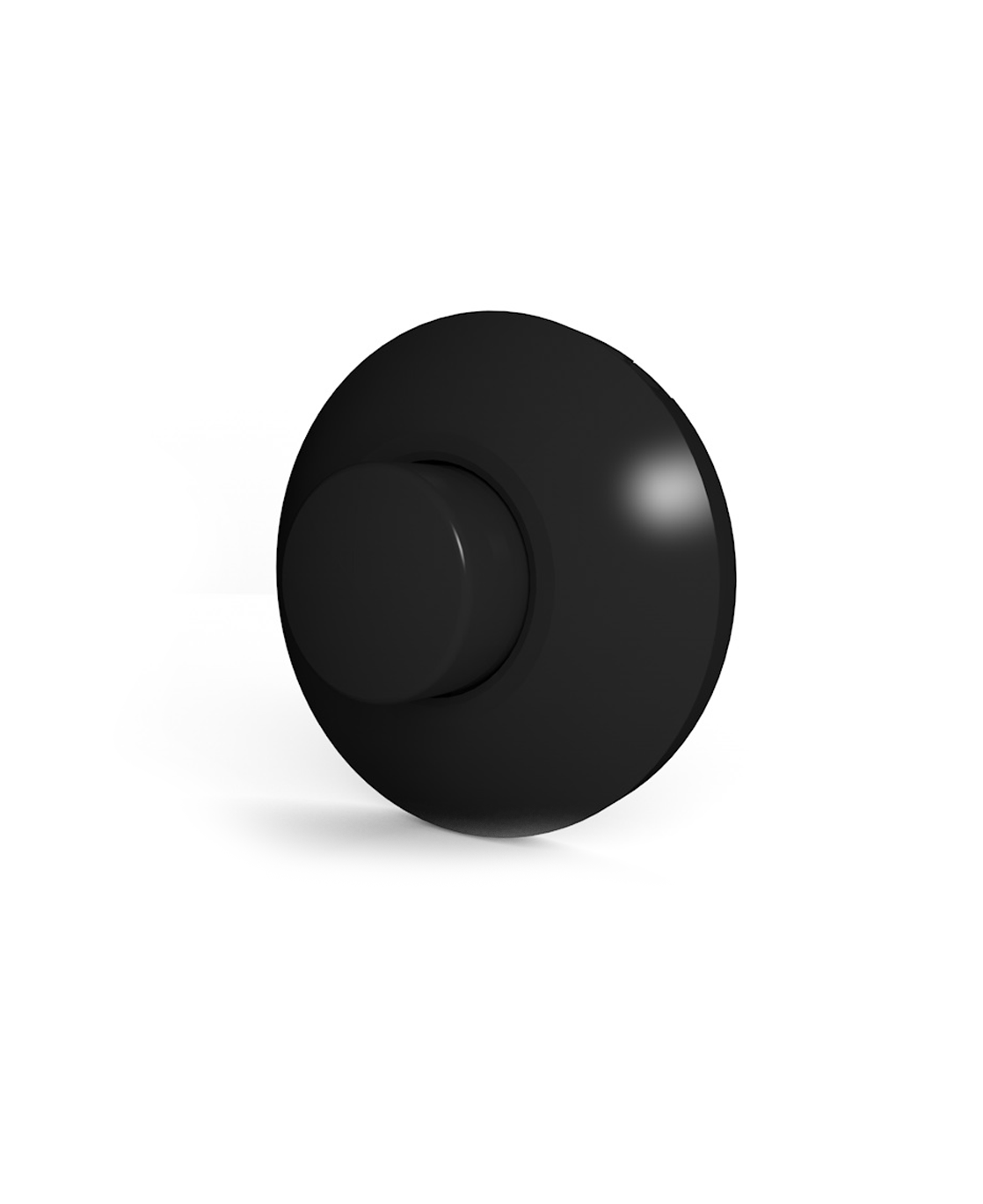

Zigbee Rotary Push Button Foot Dimmer


Now you can connect your favourite floor lamp to an existing Zigbee Smart Home by replacing an old foot dimmer with the SM317 Zigbee Dimmer! The SM317 dimmer is a direct replacement that allows a remote control over your lamp. With the SM317 you can set up automation scenes for your lamp to make it operate by a schedule or from your phone app. The floor lamp can still be controlled manually as before.

The SM317 dimmer is suitable for incandescent/halogen and LED Retrofit dimmable bulbs up to 100W. Required minimum load is 10W (lower load may cause malfunction).

Includes complete fitting instructions. Please switch off your mains before installing the dimmer. Always call a qualified electrician for any electrical work.

SKU: SM317 Categories: , , ,


Power range10-100W @ 220-240V
Type of loadLED Retrofit – Incandescent – Halogen
DimmingRotary Push Button
Wireless ConnectionZigbee 3.0
Cables section0.75mm2
Dimension81 x 32 mm
CompatibilityAmazon Echo Plus, Echo Studio, Echo Show 2Gen, Philips Hue, Samsung SmartThings, Tuya SM310, deCONZ and others

Additional information

Weight45 g


SM317 ZIGBEE cord dimmer
